Meta Web-to-App Setup

4 min read

Meta Event Manager Configurations: #

  • Login to your Meta event manager.

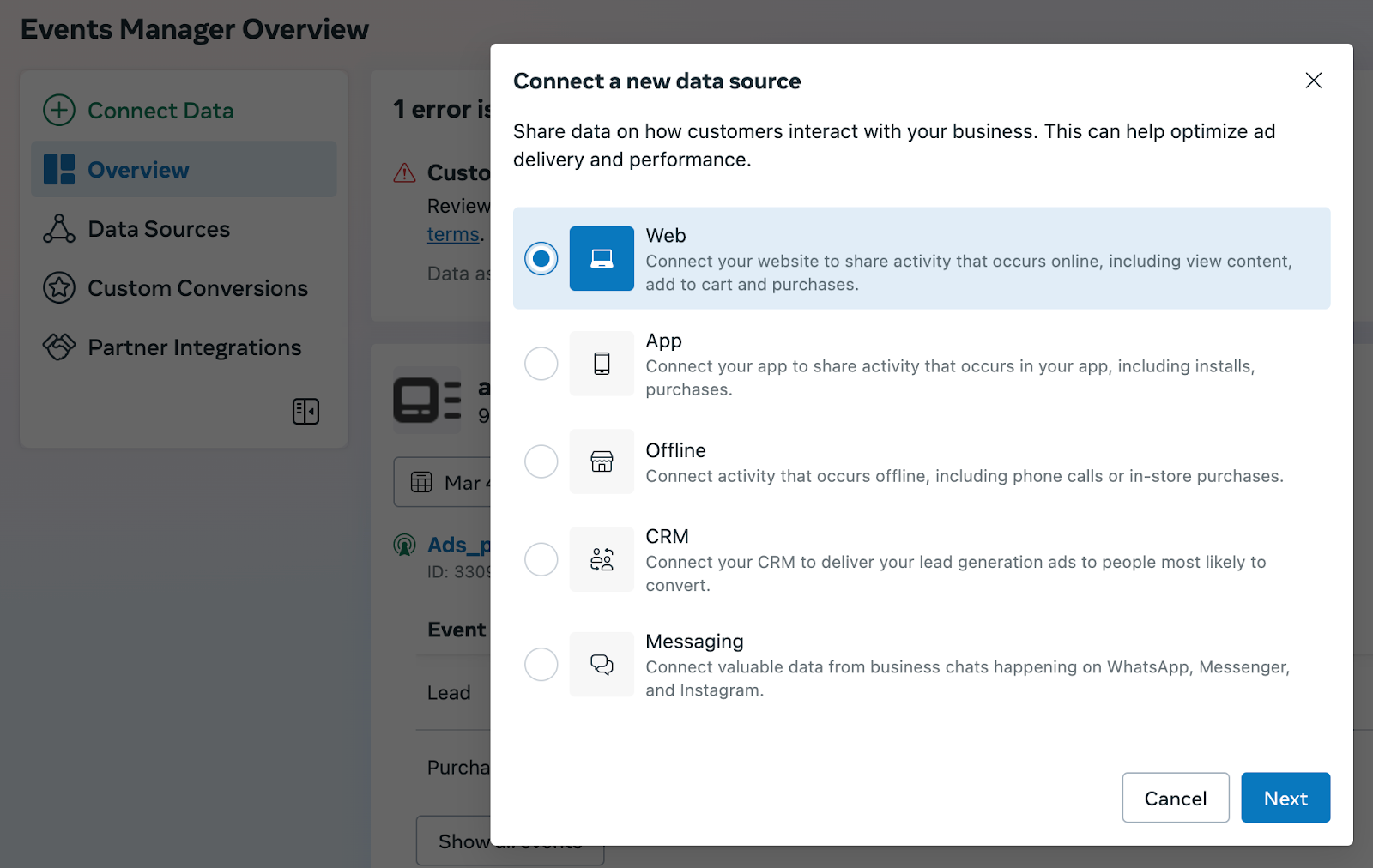

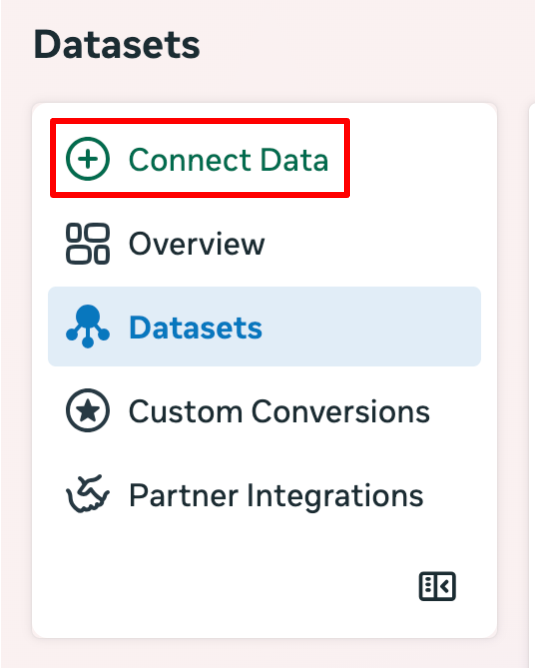

  • Click “Connect Data” to connect a new data source.

  • Choose the “Web” option.

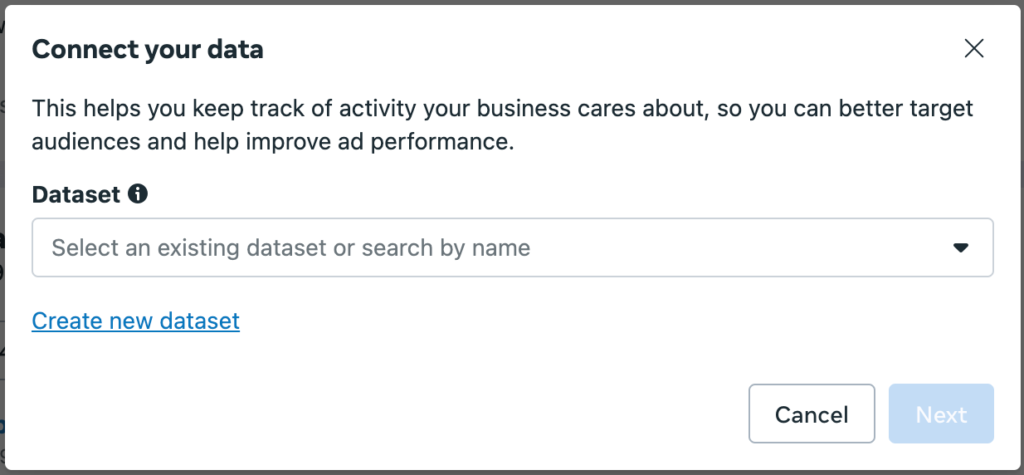

  • Create or select your existing dataset (If you have created a pixel already).

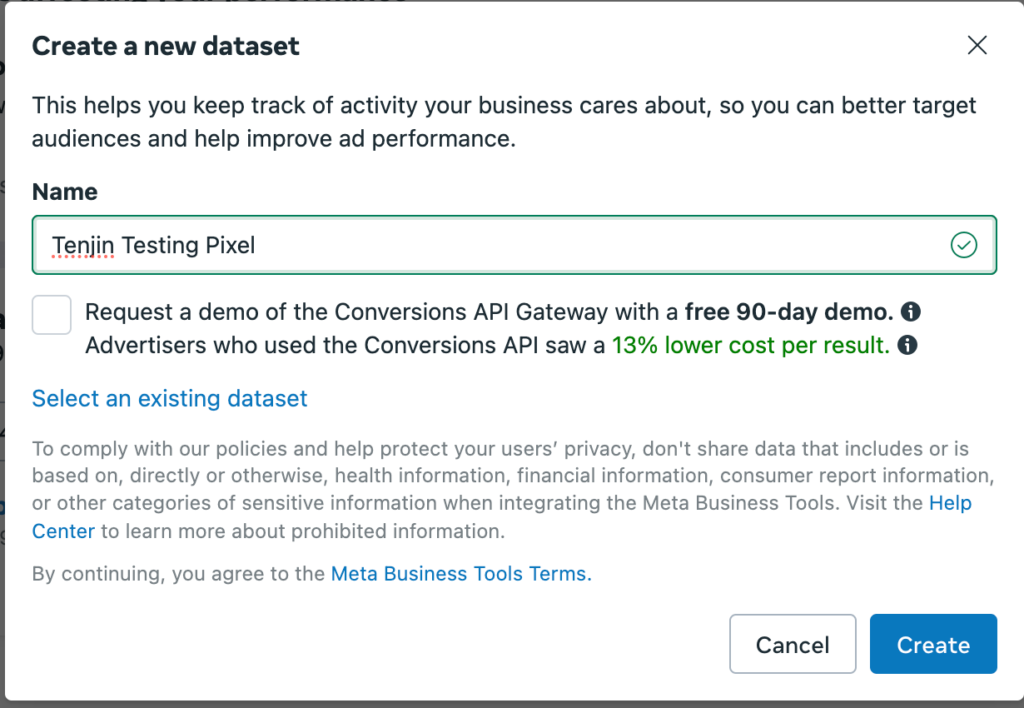

  • If you choose to create a new dataset, define a name first.

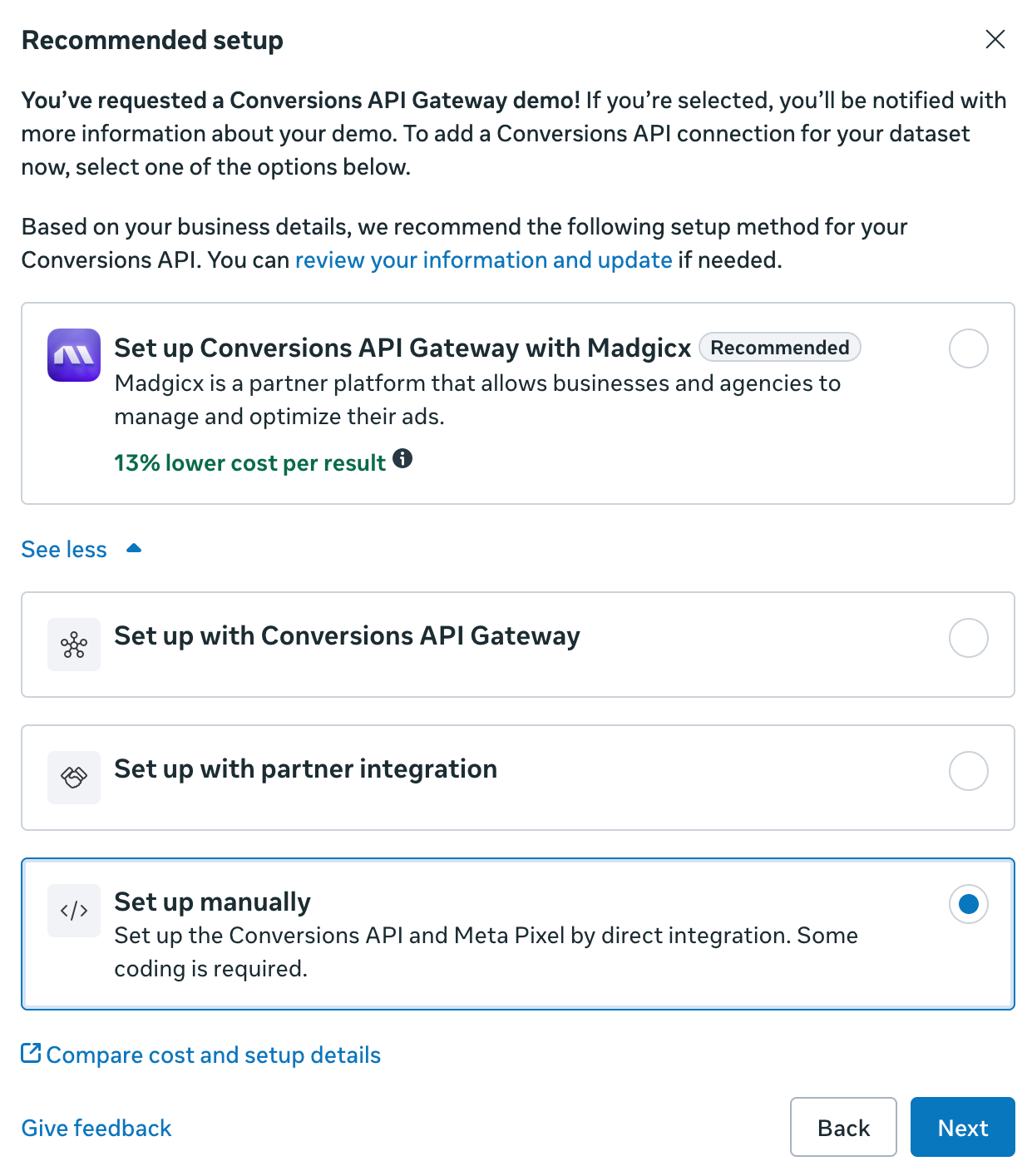

  • Choose “Setup manually” to Install the code to your landing page.

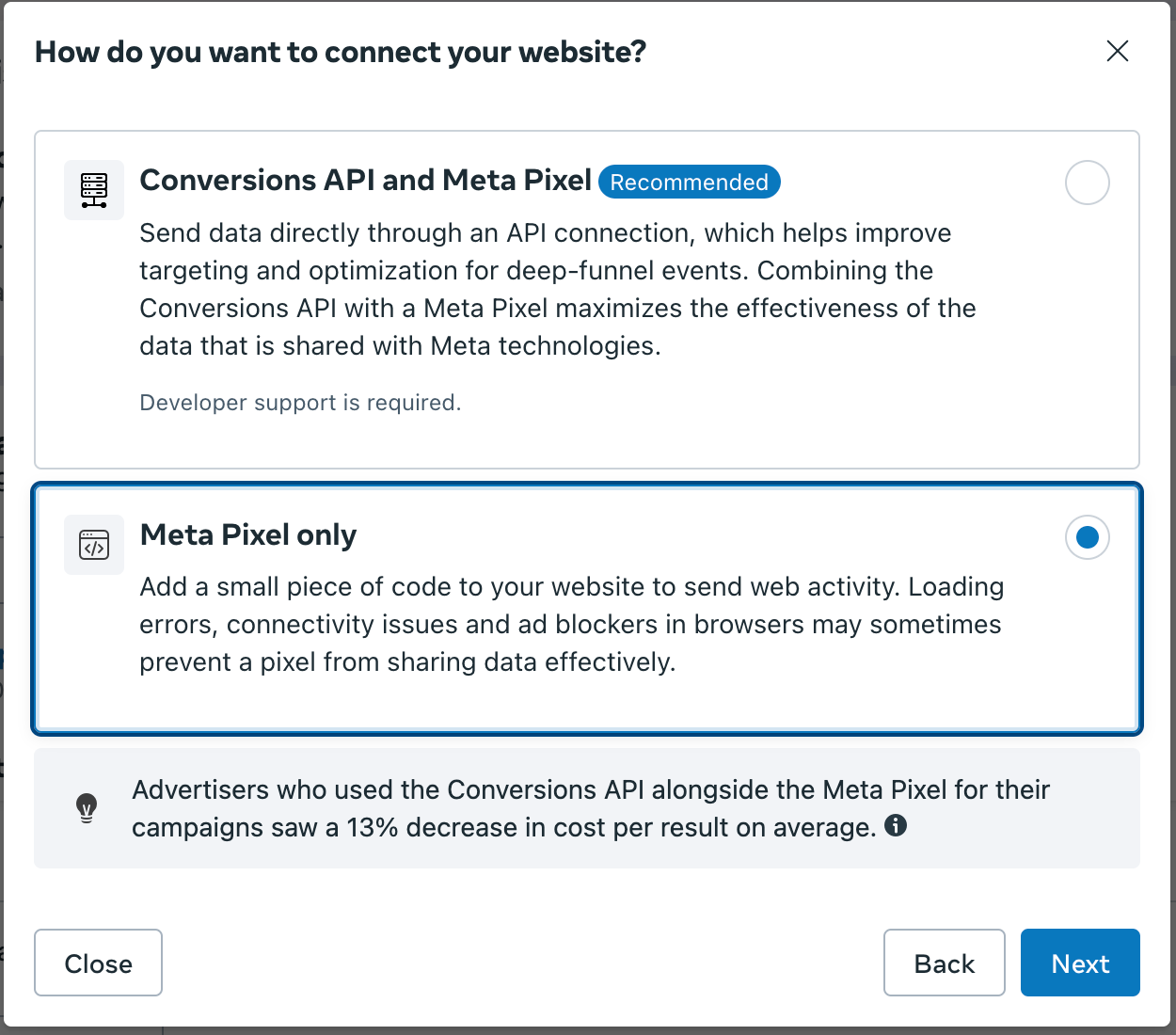

  • Choose “Meta Pixel only” option.

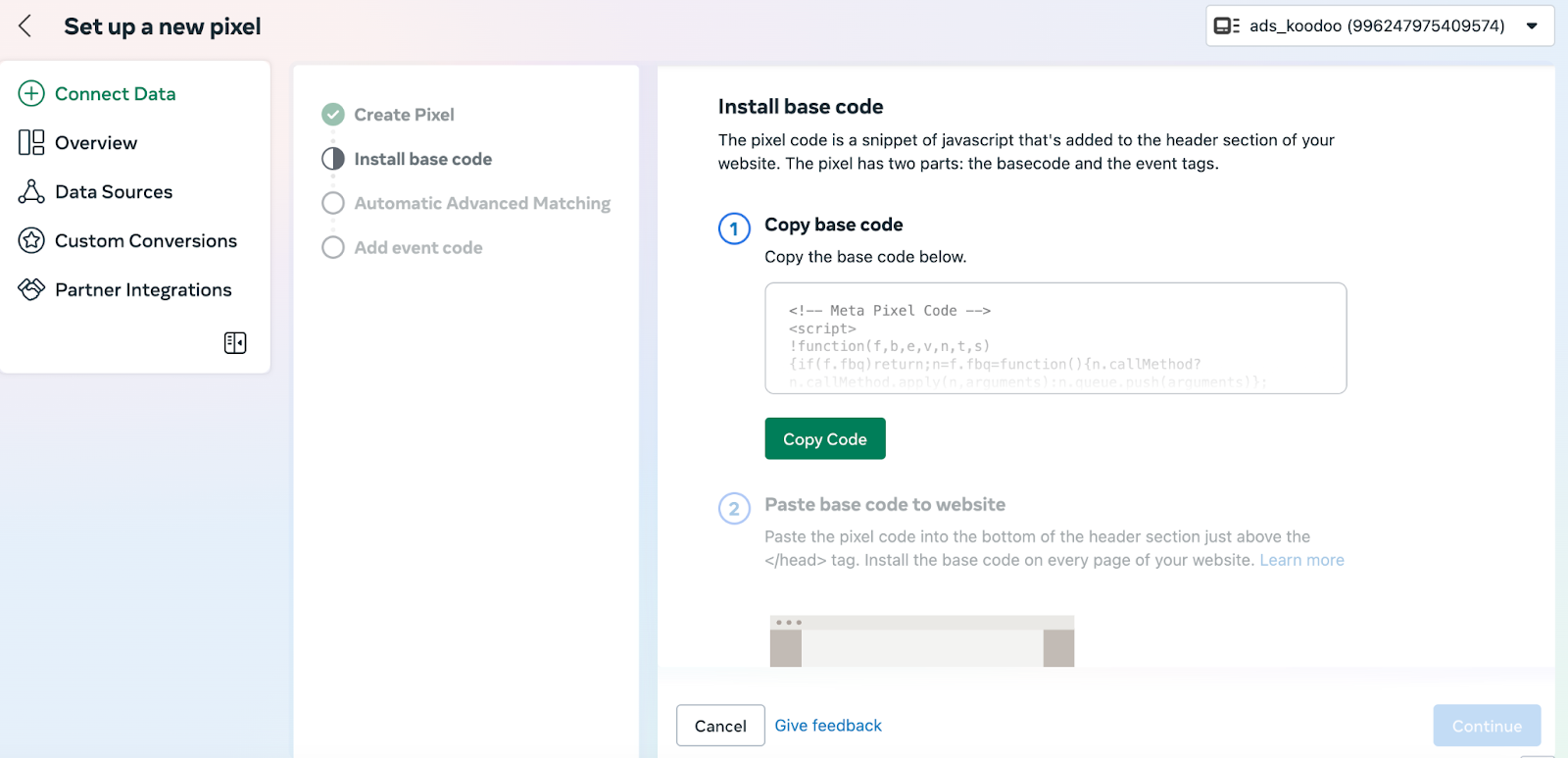

  • Then you will be redirected to the Pixel installation page, as shown below:

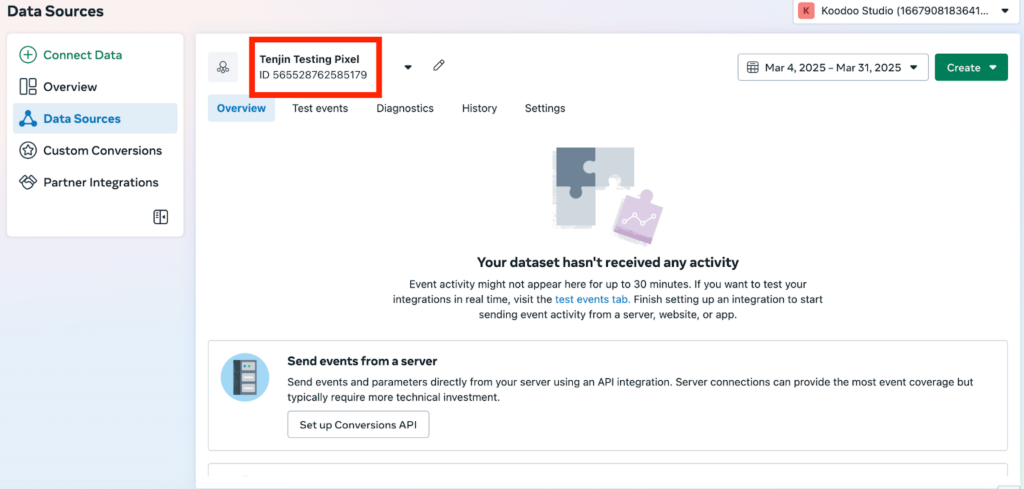

  • Follow each step, just click “Continue” (no need to Install the code now), then you will find your Pixel created with ID listed as below:

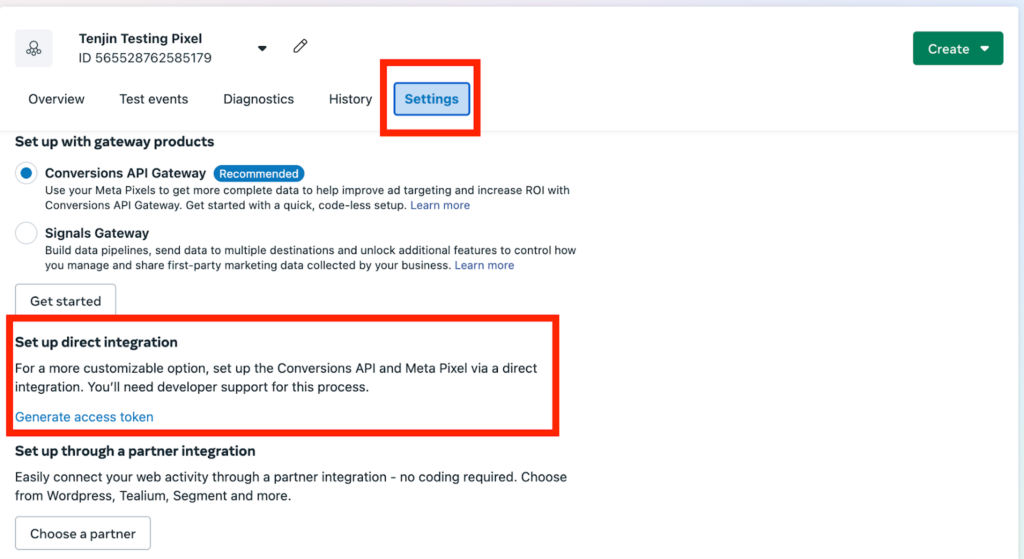

  • You can then generate your access token under the “Settings” tab, as shown below:

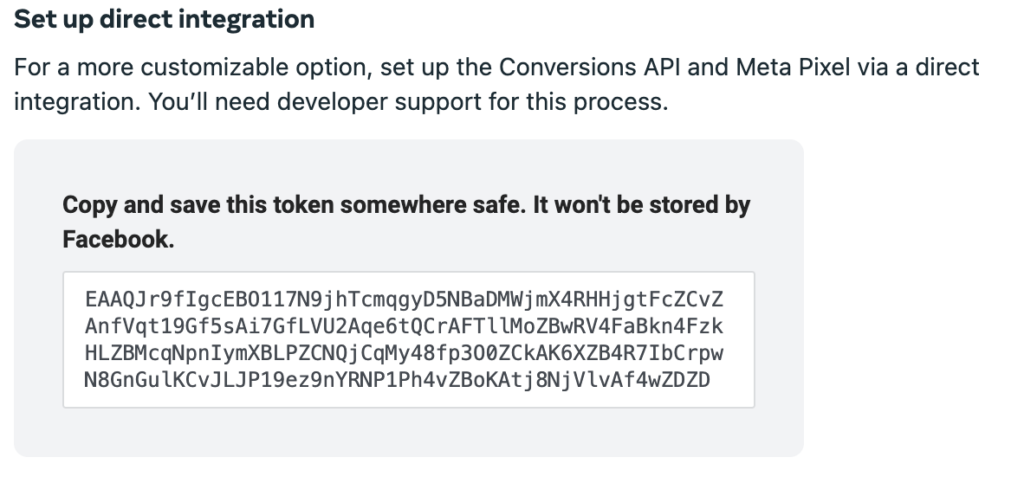

  • After you click “Generate Access Token”, you will see your token as shown below.

Please save your Pixel ID and access token for further configuration.

Landing page code installation #

  • Follow our sample code and simply replace the Pixel ID with your own. Please include the Meta Pixel code in the <head> section, and update 670376802193803 to your own Pixel ID.

JavaScript
<head>
  <!-- Meta Pixel Code -->
  <script>
    !(function (f, b, e, v, n, t, s) {
      if (f.fbq) return;
      n = f.fbq = function () {
        n.callMethod
          ? n.callMethod.apply(n, arguments)
          : n.queue.push(arguments);
      };
      if (!f._fbq) f._fbq = n;
      n.push = n;
      n.loaded = !0;
      n.version = "2.0";
      n.queue = [];
      t = b.createElement(e);
      t.async = !0;
      t.src = v;
      s = b.getElementsByTagName(e)[0];
      s.parentNode.insertBefore(t, s);
    })(
      window,
      document,
      "script",
      "https://connect.facebook.net/en_US/fbevents.js"
    );
    fbq("init", "670376802193803");
    fbq("track", "PageView");
  </script>
  <noscript>
    <img
      height="1"
      width="1"
      style="display: none"
      src="https://www.facebook.com/tr?id=670376802193803&ev=PageView&noscript=1"
    />
  </noscript>
  <!-- End Meta Pixel Code -->
</head>

Please include below part in the body of your html, you can edit accordingly if needed

JavaScript
<script>
    // Capture URL Parameters
    const urlParams = new URLSearchParams(window.location.search);
    let fbclid = urlParams.get("fbclid") || "";
    let fbpid = getFbPid();
    let campaign_id = urlParams.get("campaign_id") || "";
    let campaign_name = urlParams.get("campaign_name") || "";
    let creative_name = urlParams.get("creative_name") || "";


    // Function to Get Facebook Pixel ID from Cookies
    function getFbPid() {
        let fbPidMatch = document.cookie.match(/(^|;) ?_fbp=([^;]*)(;|$)/);
        return fbPidMatch ? fbPidMatch[2] : null;
    }


    // Function to Handle Download Button Click
    function handleDownloadClick() {
        let trackingURL = `https://track.tenjin.com/v0/metapixel/bFpF2uljcAyfPCzwUJ0tuZ?campaign_id=${campaign_id}&campaign_name=${campaign_name}&creative_name=${creative_name}&tenjin_parameter_0=${fbpid}&tenjin_parameter_1=${fbclid}&bundle_id=com.tenjin.wordsearch&platform=ios`;
        let downloadURL = "https://kudoocat.com/puzzlegame.apk";


        // Step 1: Send tracking request silently (NO page redirection)
        fetch(trackingURL, { method: "GET", mode: "no-cors" })
            .then(() => {
                console.log("Tracking sent successfully.");
            })
            .catch(() => {
                console.log("Tracking request failed.");
            });


        // Step 2: Directly trigger file download
        window.location.href = downloadURL;
    }


    // Prevent iOS Double-Tap Zoom
    let lastTouchEnd = 0;
    document.addEventListener('touchend', function(event) {
        const now = Date.now();
        if (now - lastTouchEnd <= 300) {
            event.preventDefault();
        }
        lastTouchEnd = now;
    }, false);


    // Prevent Multi-Touch Gestures
    document.addEventListener('touchstart', function(e) {
        if (e.touches.length > 1) {
            e.preventDefault();
        }
    }, { passive: false });
</script>

For the tracking URL part, please get your own tracking url from Tenjin (refer to Tenjin setup instruction as below).

Configuration on Tenjin dashboard: #

  • Add Meta Web-to-App channel to Tenjin.

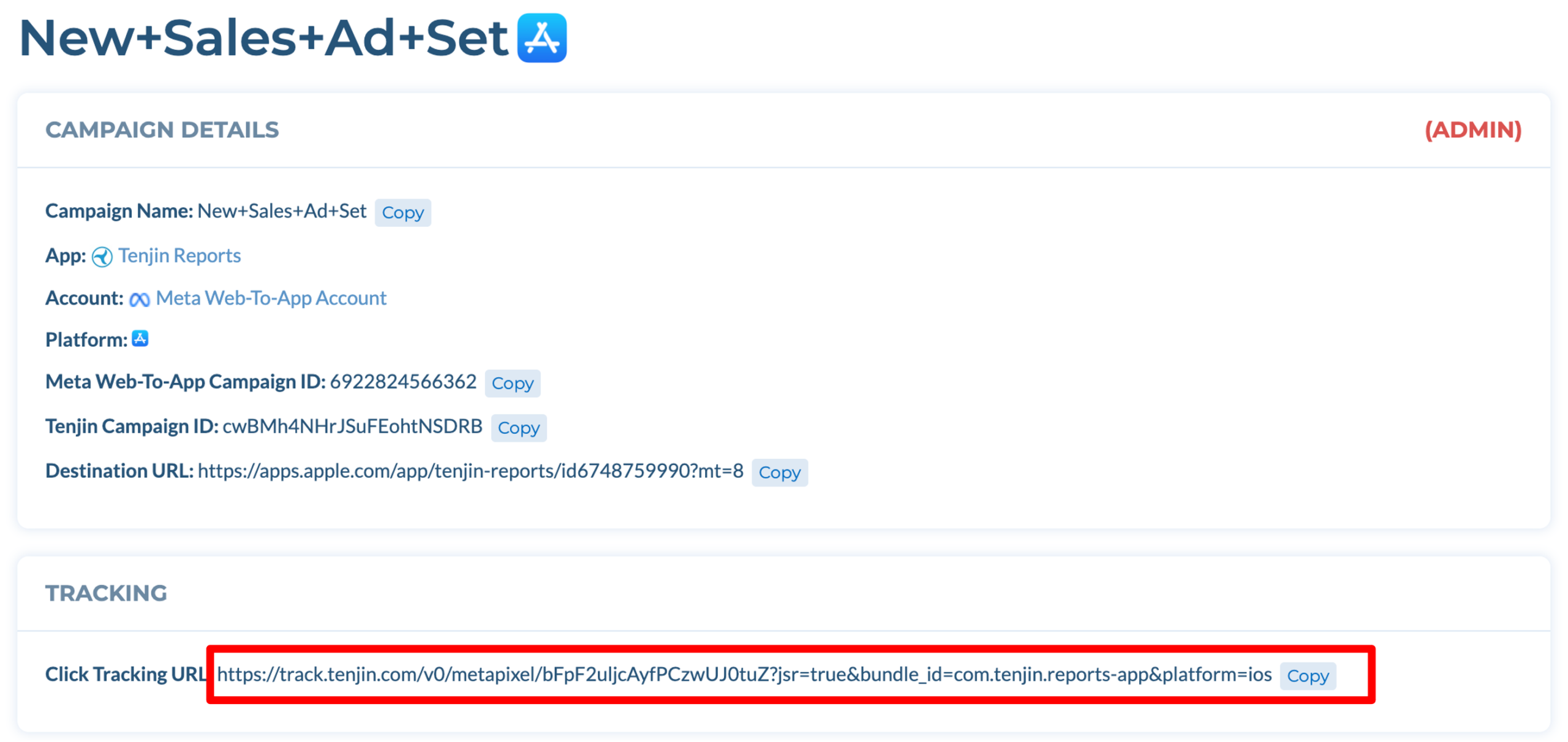

  • Create a campaign in the campaigns page and copy the tracking link as below. bFpF2uljcAyfPCzwUJ0tuZ in the URL will be a unique ID for your Tenjin account.

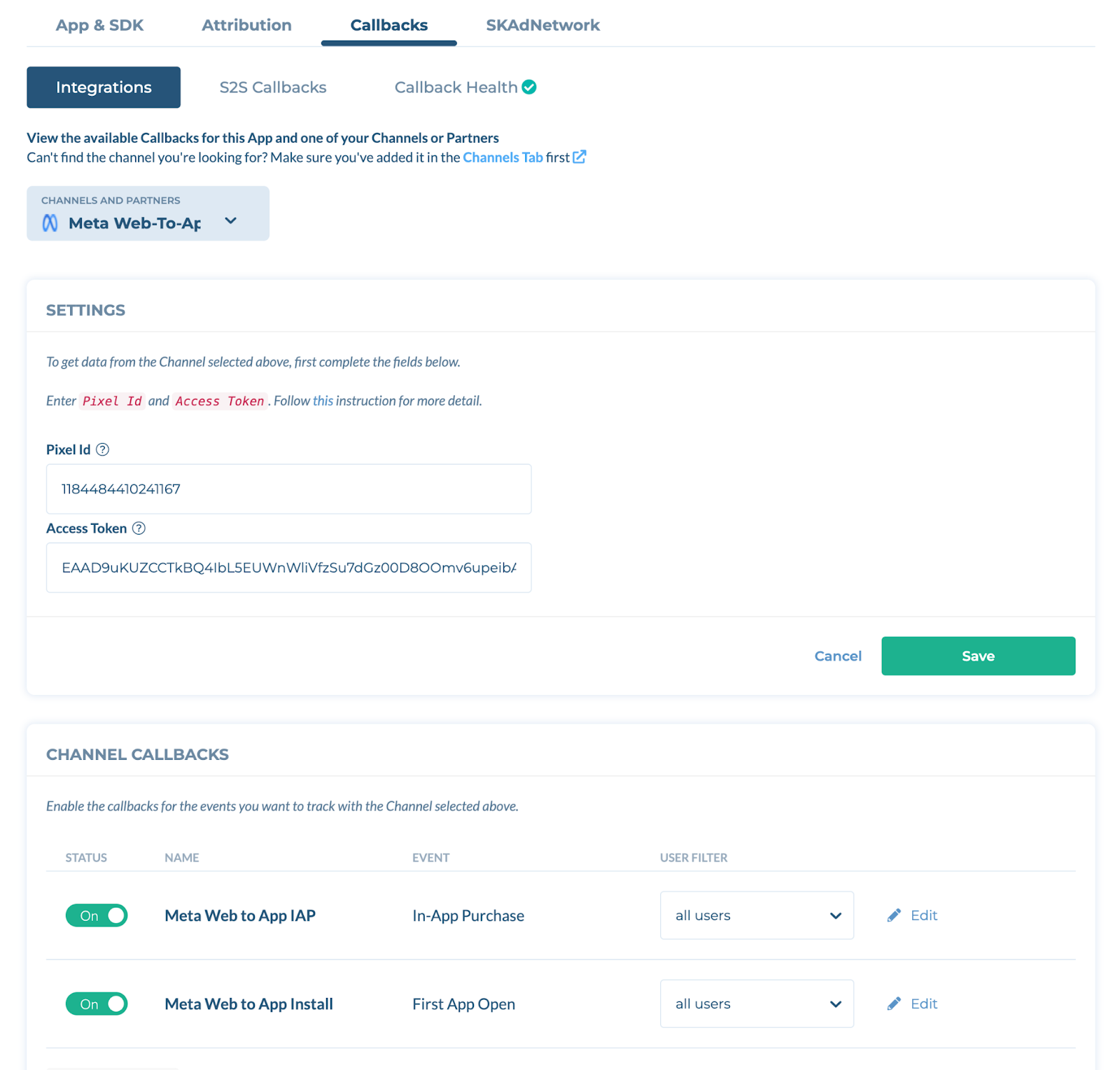

  • Turn on the Meta Web-to-App Callback:
    • Meta Web to App IAP
    • Meta Web to App Install (optional)
    • Meta Web to App Custom Event (optional)

Meta Ads Manager: #

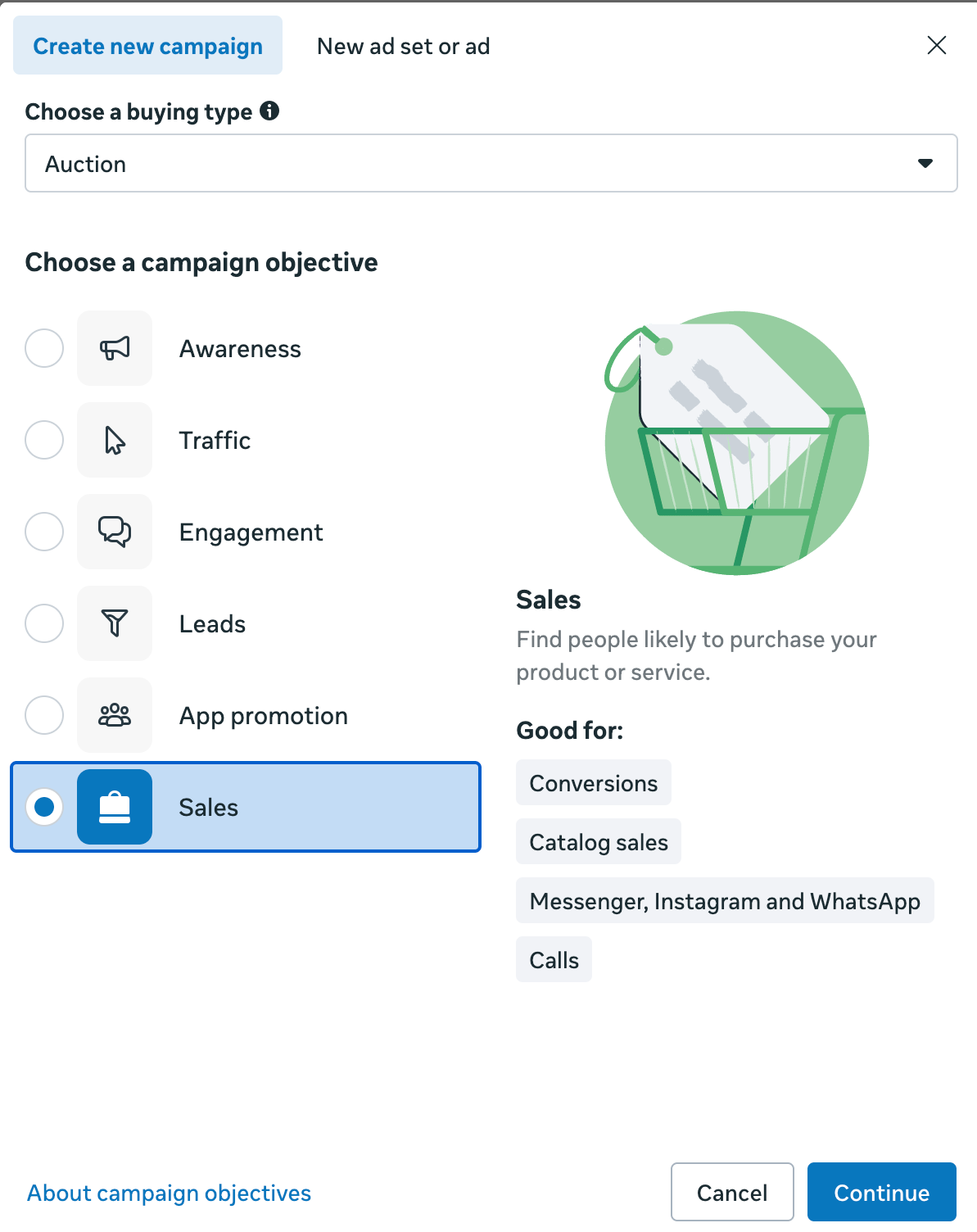

  • Choose a “Sales” objective when you create a campaign on Meta Ads Manager.

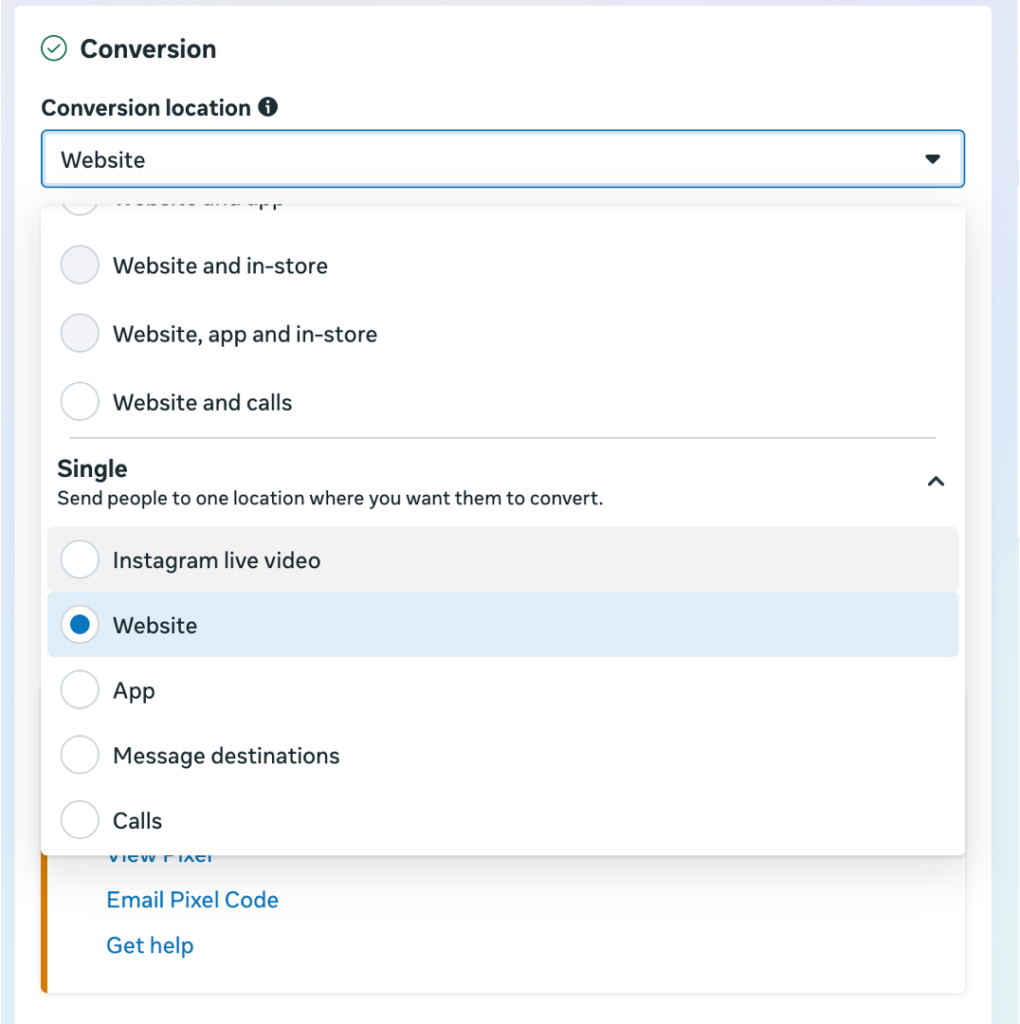

  • At the ad-set level, please choose “Conversion” → “Website”.

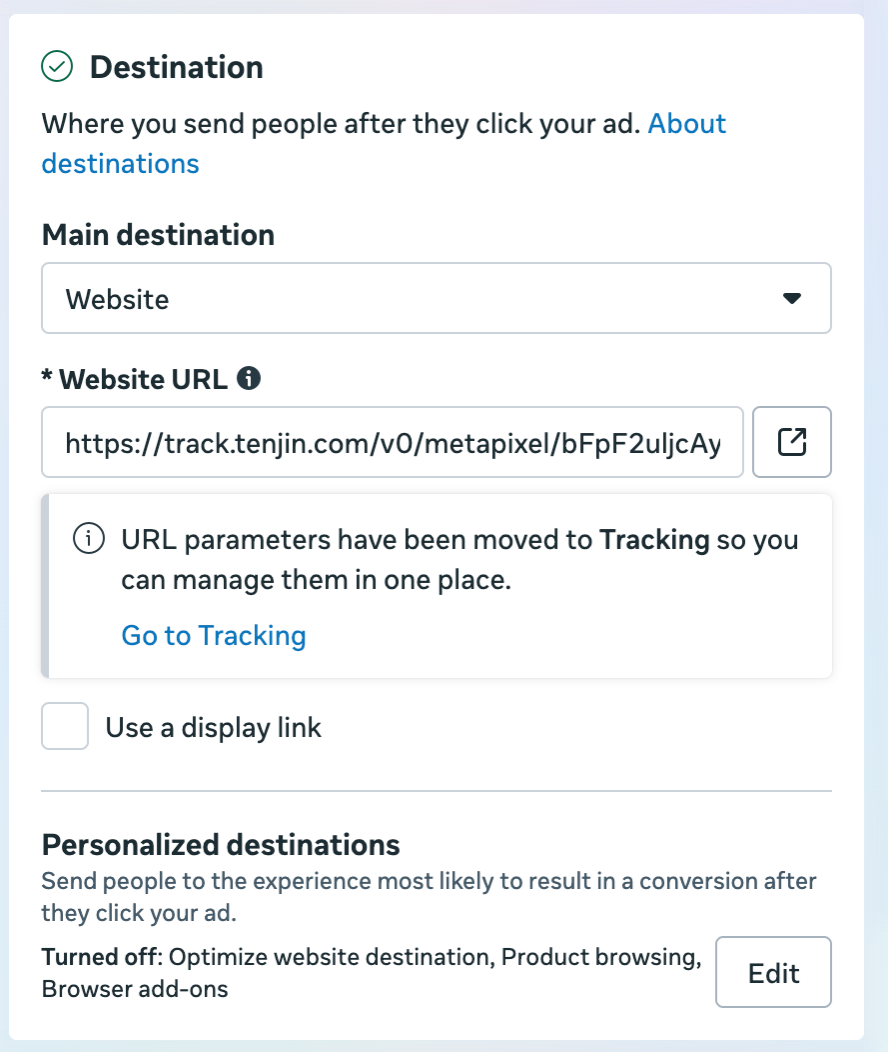

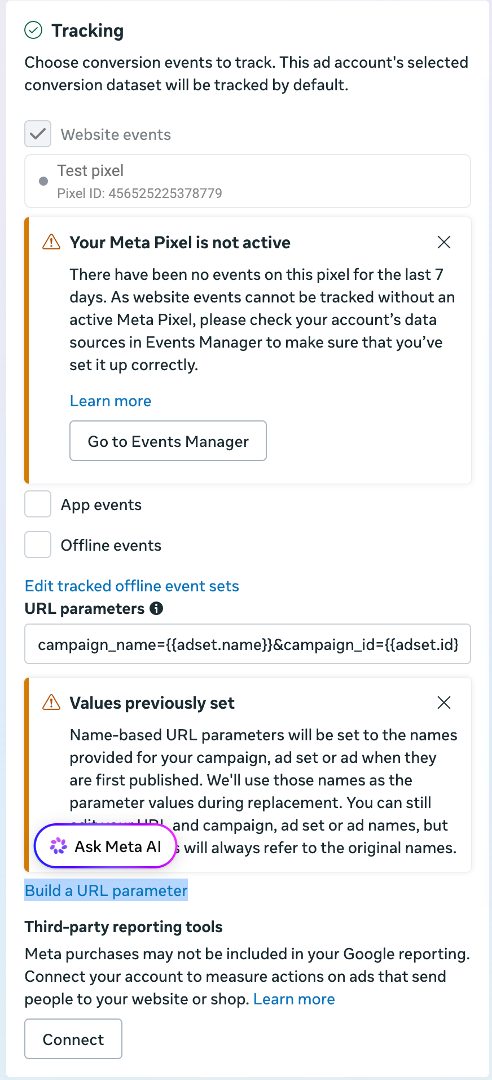

  • In the ad level, select your pixel you created under the “Tracking” part.

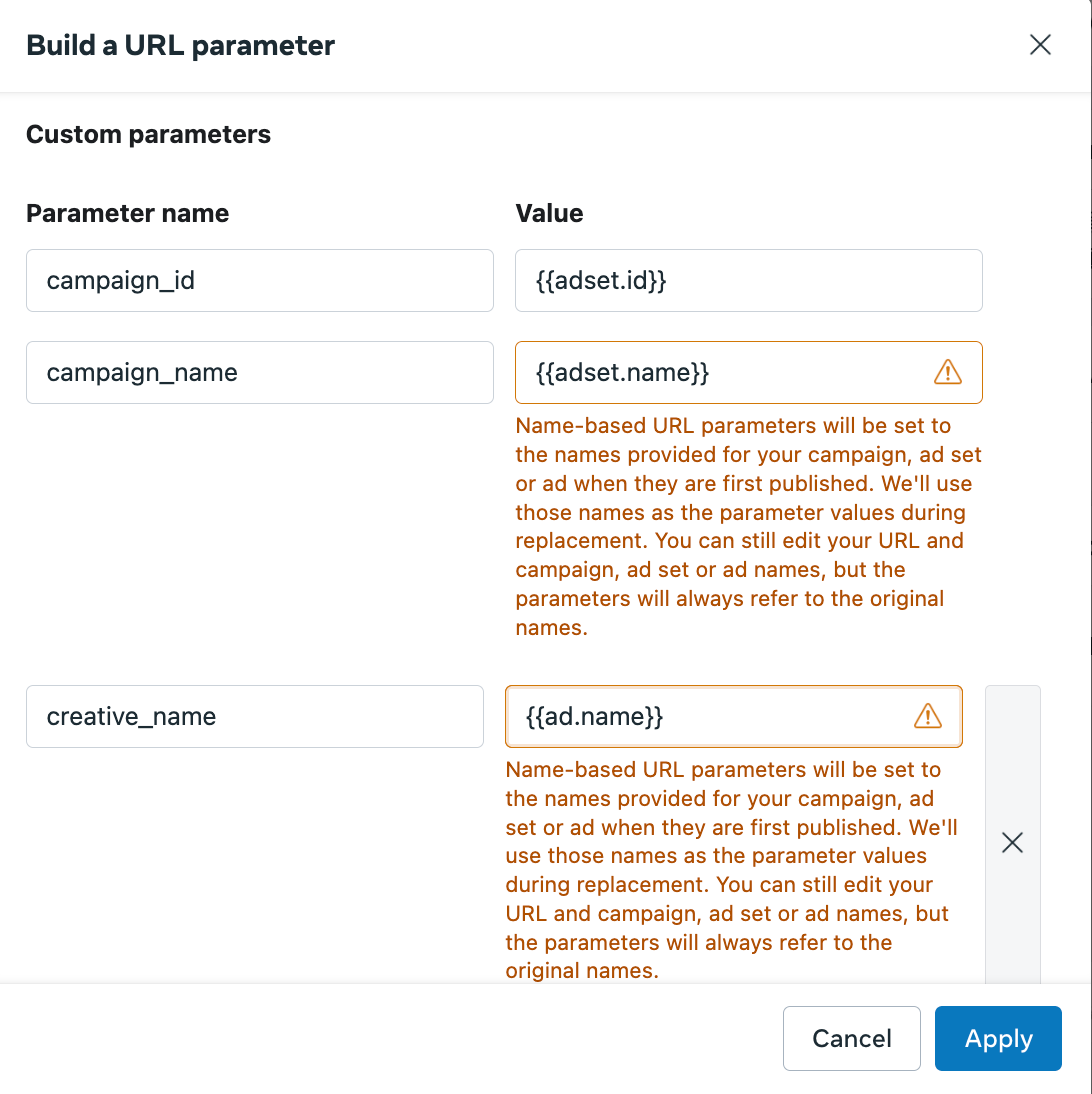

  • Click “Build a URL parameter” link, and follow the setup below to add campaign_id, campaign_name and creative_name mapped to proper params as shown below:

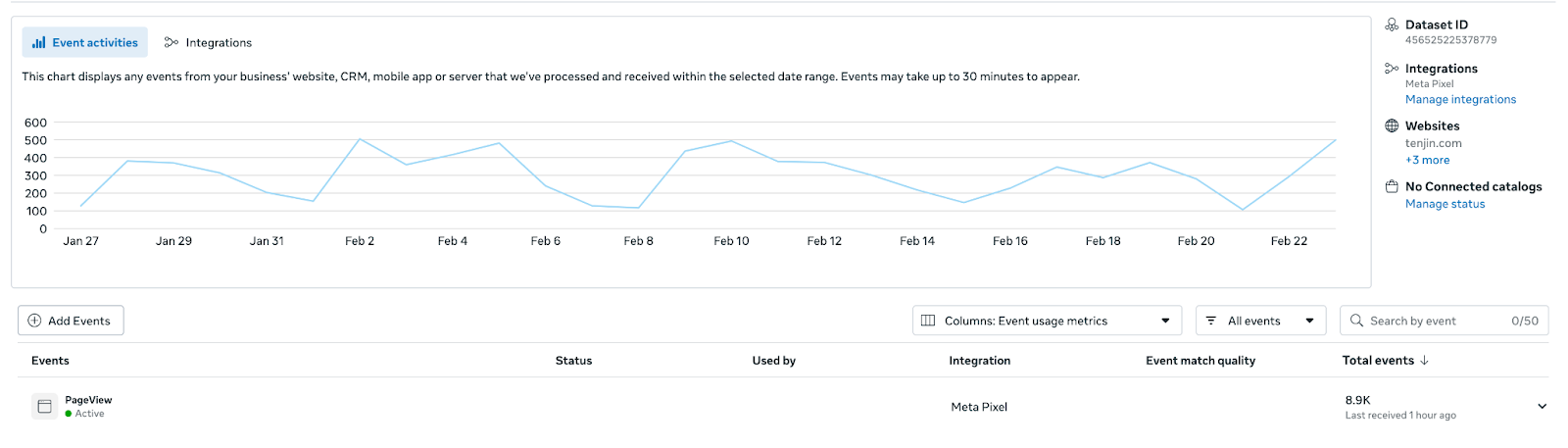

  • Please make sure you have already triggered the event to Pixel after all above configuration is completed, you can verify if you have received those events under “Datasets” -> “Overview” in the Meta event manager.
